Sitela has several options for roller door, opening gates and metalwork. With a complete metalwork structure and highly trained professionals, designers and analysts, they make all your needs possible, no matter what it is. All you need is to close. We can create the most suitable solution since the base of the project until its automation.
1 - Column in industrial tube 100x100mm wall 2,00mm length 3,00. Fixed with concrete in holes of 0,90cm
2 - Structure in industrial tube 60x40mm, wall 1,5mm

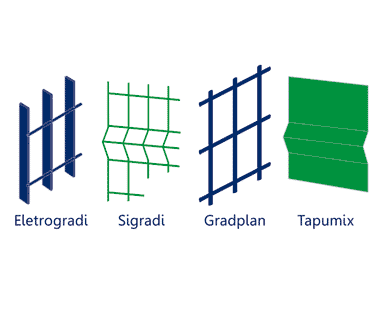

3 - Kinds of inside – Sigradi, Horizon, Defence, Eletrogradi and Tapumix
4 - Fence catch and hasp part with steel Ø 5/8 as detail “02” and “03”.
5 - Hinge in sheet 3/8 with screw 3/8x1” as detail “01”.
6 - Painted with electrostatic painting
7 - Thin concrete
Obs: above 4,00m – column in tube 100x100x1/8” above 7,00m – column in tube 100x100x4,75mm
1 - Column in industrial tube 80x80mm wall 1,5mm length 3,00m. Fixed with concrete in holes of 0,90cm.
2 - Structure in industrial tube 60x40mm, wall 1,5mm
3 - Kinds of inside – Sigradi, Horizon, Defence, Eletrogradi and Tapumix.
4 - Fence catch and hasp with iron Ø 5/8 according to detail “02”
5 - Hinge in sheet 3/8 with screw 3/8x1” according to detail “01”.
6 - Painted with electrostatic painting.
7 - Thin concrete
Obs: over 4,00m – column in tube 100x100x1/8” over 7,00m – column in tube 100x100x4,75mm
1 - Column in industrial tube 80x80mm wall 1,5mm length 3,00m. Fixed with concrete in holes of 1m according to detail “A”
2 - Edge of industrial tube 80x80mm, wall 1,5mm length 3,00. Fixed with concrete in holes of 1m according to detail “C-C”.
3 - Structure in industrial tube 60x40mm, wall 1,5mm.
4 - Kinds of inside - Sigradi, Horizon, Defence, Eletrogradi and Tapumix.
5 - Superior rail in corner pieces 2x1/8” according cut “B-B”.
6 - 1 support with 100mm sheet 3/16” with 2 nylon rollers Ø 40mm with screw according to cut “B-B”.
7 - 2 rope sheeves Ø 100mm with blinded rollers with support according to detail cut “A-A”
8 - Rail in corner piece 1 ½”x1/8” with flat iron 1”x1/8” in iron Ø 5/8” according to cut “A-A”.
9 - Painted with electrostatic painting.
Obs: over 6,00ml of sheet, use:
- 2 joint columns of support and 1 for edge.
- Rail and roller double blinded
1 - 1 hedge of industrial tube 60x40mm, wall 4,75mm length 2,08m. Fixed with sheet and nylon pulley bushing Ø 40cm with screw
2 - 2 pulleys Ø 100mm with blinded rollers
3 - 2 supports with polypropylene rollers
4 - Trail in flat bar 2x1/4 with iron Ø 5,8 fixed with bushing
5 - Fixing with sheet and bushing
6 - Structure in industrial tube 60x40mm, wall 1,5mm
7 - Types of inside - Sigradi, Horizon, Defence, Eletrogradi, and Tapumix.
8 - Superior rail in profile U 40x40mm sheet 2mm
1 - Industrial Tube 100x100mm wall 1,5mm, fixed in sheet 1/4"x50mm
2 - Amount in tube 60x40mm wall 1,5mm
3 - Sheet Profile U 42x40mm sheet 2mm
4 - Sheet Tapumix
5 - Counter weight, tube 80x80mm, wall 1,5mm
6 - Steel Cable 1/8"
7 - 2 rollers 100mm with blinded rollers
8 - Sheet 50mm x 1/4" with 4 bushings 8mm x 3 1/2"
9 - 4 nylon rollers with rollers
Check the kinds of gates. We have several models in several heights and lengths, which can be personalized in accordance to the customer’s needs.
